High Fidelity Sound Quality

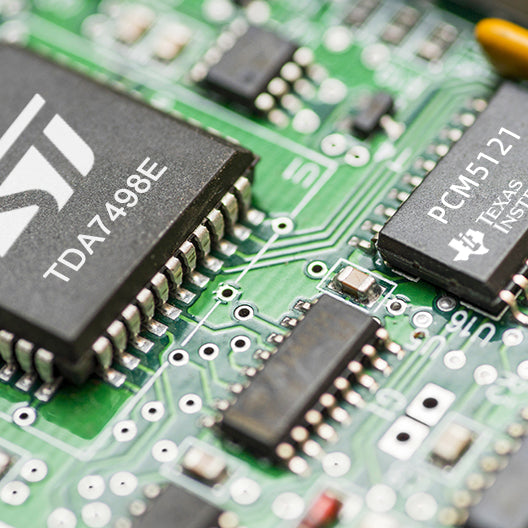

The PCM5121 DAC chip of Texas instruments andthe TDA7498E power amplifier chip of STMicroelec-tronics are selected for the wall-mounted speakers.The combination of the two industry-leadingHiFl-level iC provides outstanding sound qualityand strong power.

Product Details

Description

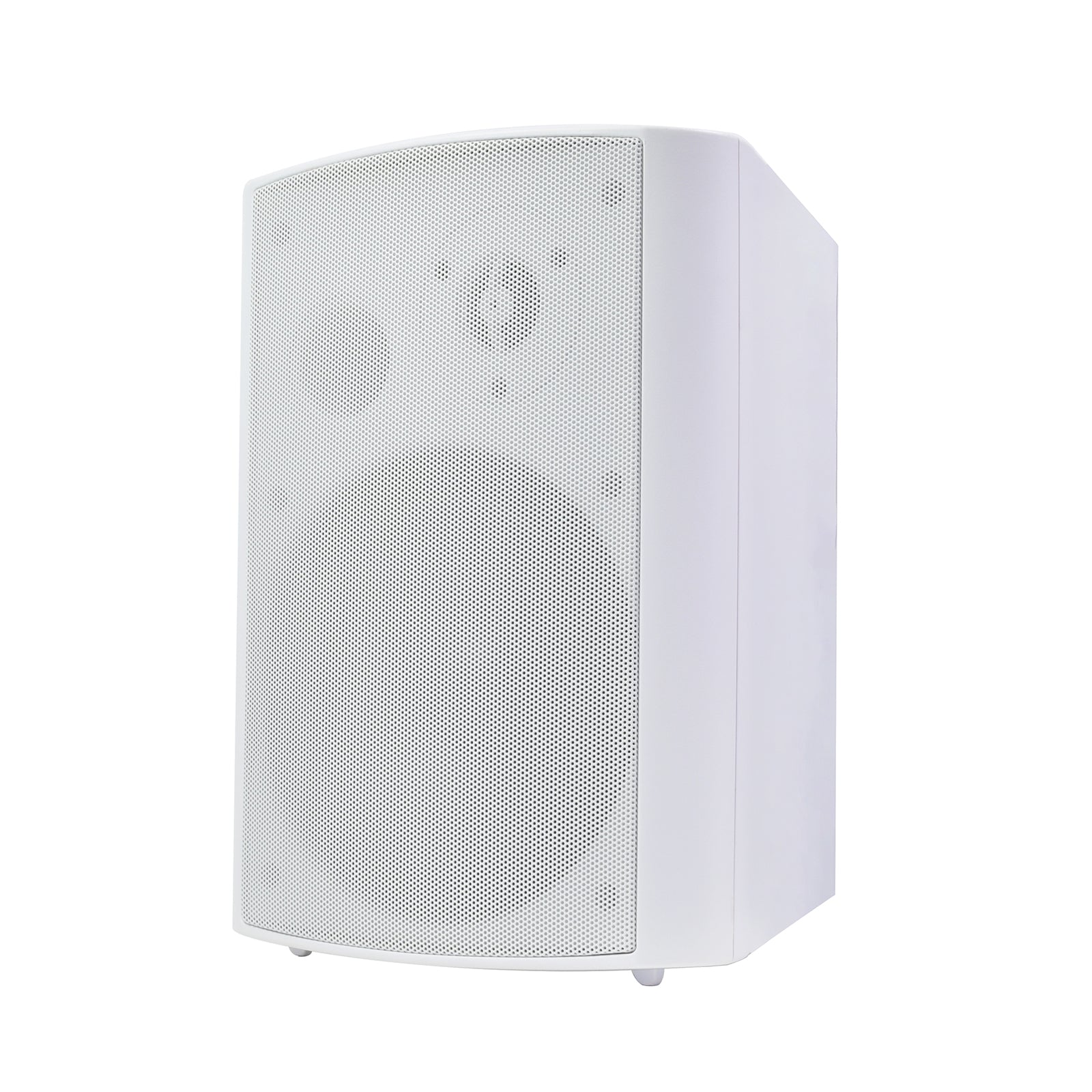

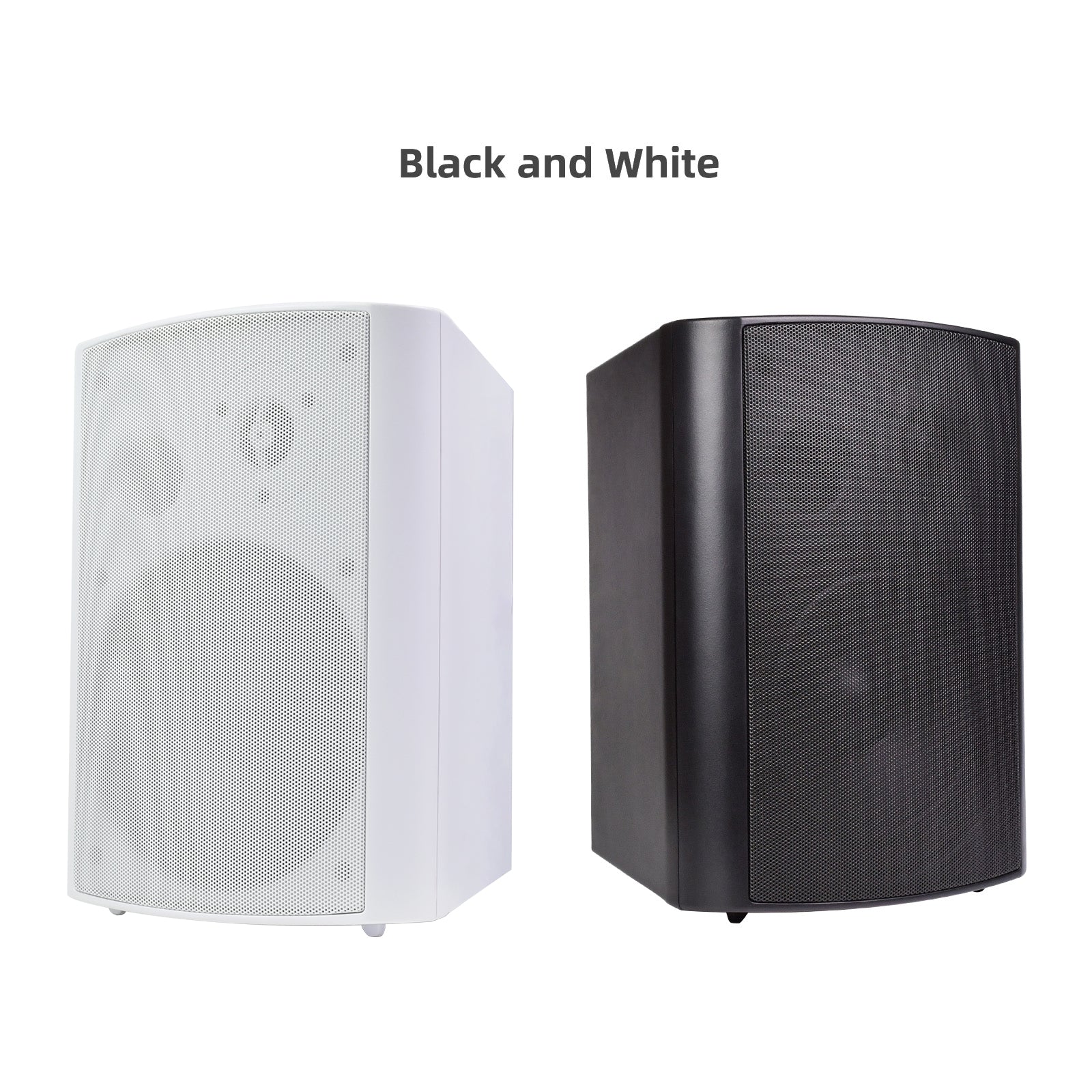

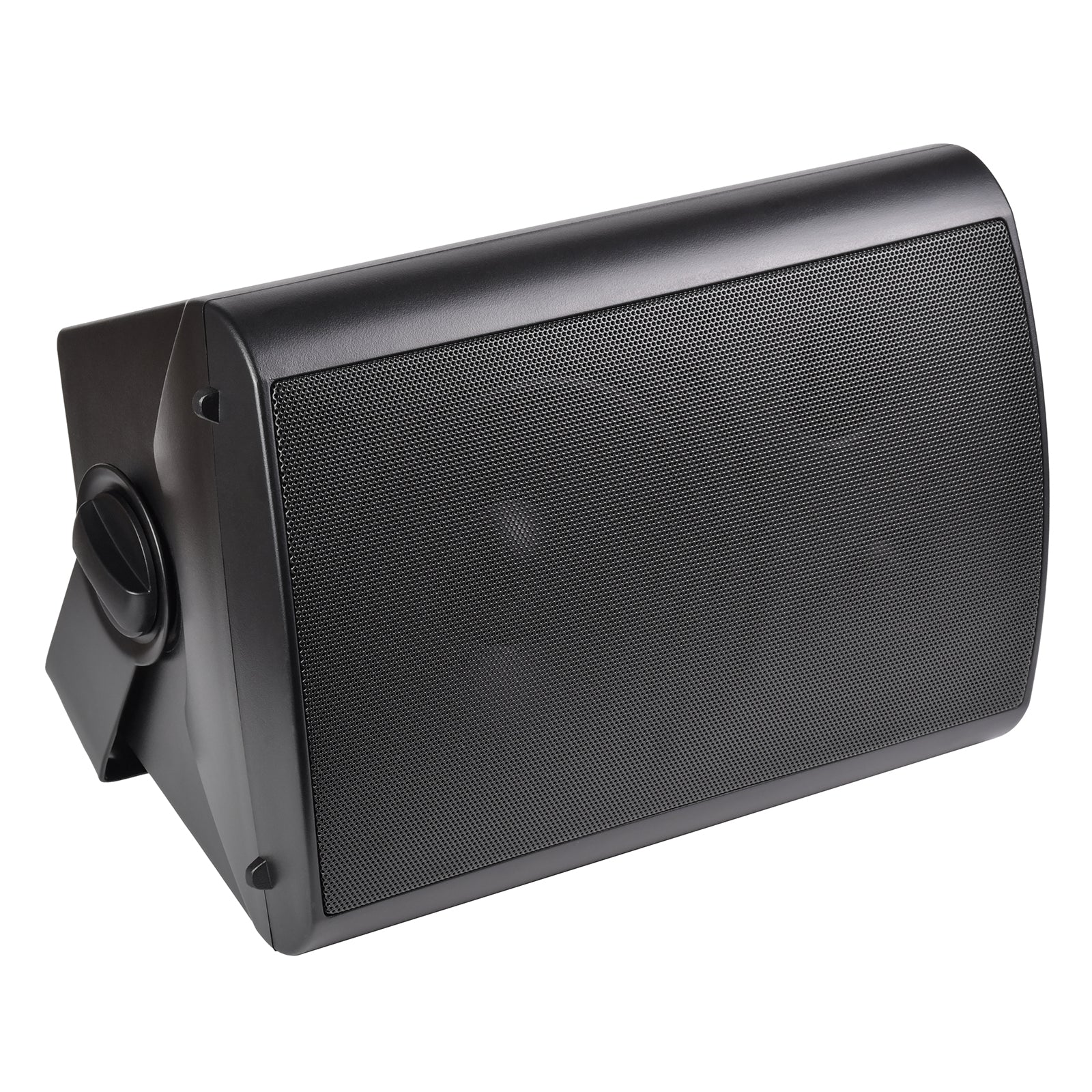

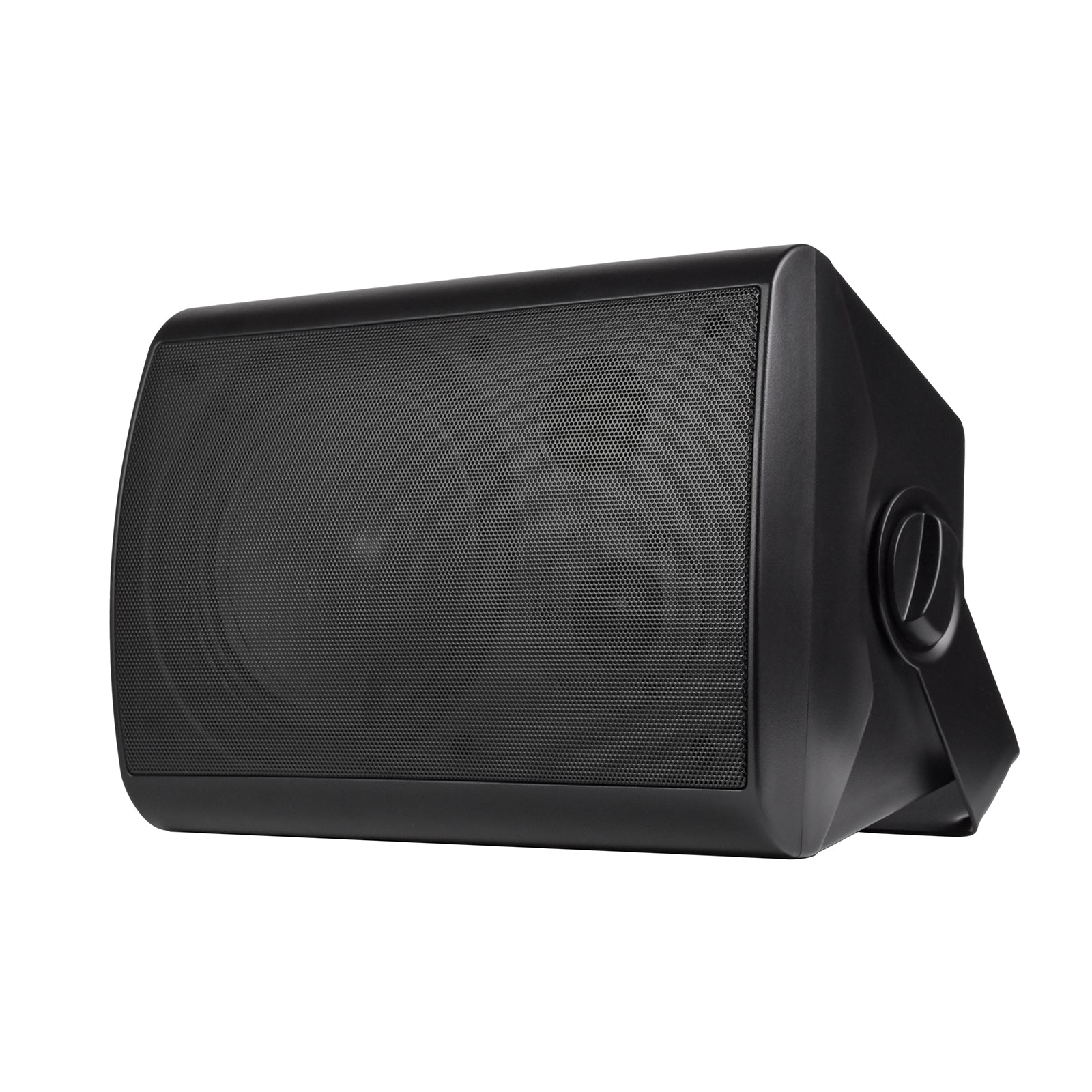

Experience superior sound with the CS-5 HIFI Wall-Mounted Speaker, designed for high-fidelity audio and seamless connectivity. It supports dual-band WiFi and Bluetooth, ensuring strong wireless signals and excellent through-wall performance.
  • Featuring a 6.5-inch full-range driver and a 1-inch high-fidelity tweeter, the CS-5 covers a frequency range of 60Hz–20kHz with an impressive 90dB SPL, delivering clear, dynamic sound with precise balance optimized by professional tuning.
  • Powered by a premium Texas Instruments PCM5121 DAC and STMicroelectronics TDA7498E amplifier, it combines industry-leading components for exceptional sound quality and robust output. With 100W total power across the main and passive sub-speaker, the CS-5 adapts to various settings, offering rich, immersive audio.
  • The CS-5 also supports Apple AirPlay and DLNA for easy wireless music streaming from iPhones, iPads, iPod touches, Android devices, or PCs. Enjoy high-speed, low-latency HD playback via dual-band WiFi for a seamless listening experience.
Elevate any space with the CS-5, delivering professional-grade sound quality, versatile connectivity, and powerful performance across all environments.
Features
  • Wi-Fi Protocol: IEEE 802.11 a/b/g/n/ac 1x1 dual band WiFi 2.4 GHz and 5GHz
  • Bluetooth protocol: BT5.0 with EDR and BLE

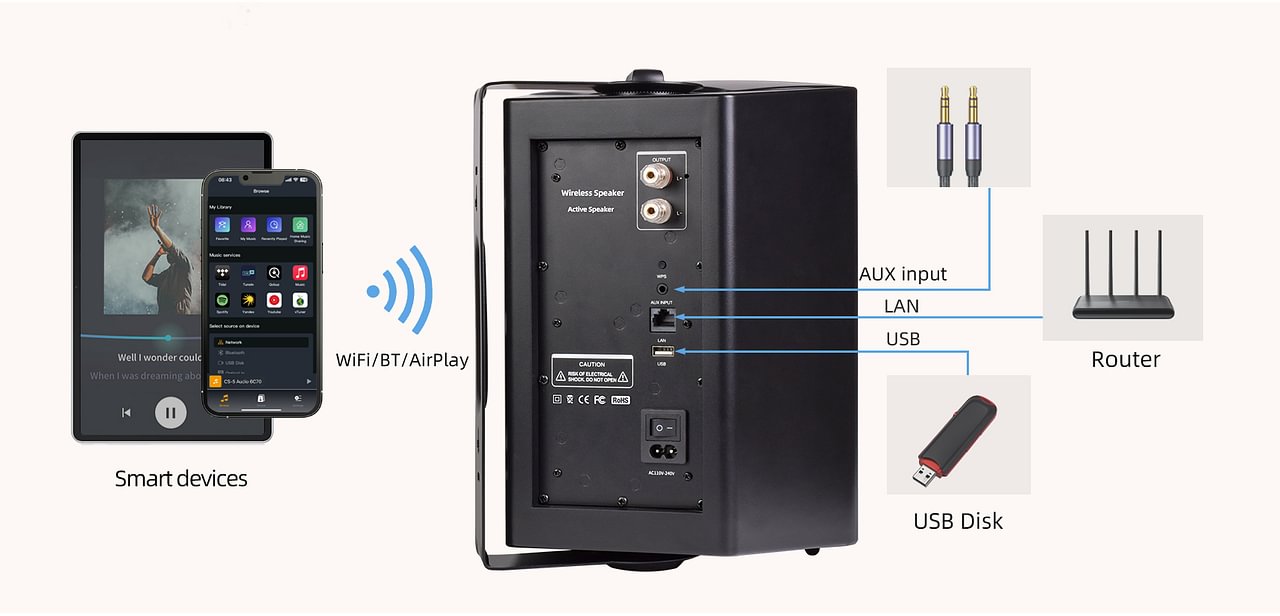

  • Support WiFi/Bluetooth/U disk playback/Aux input
  • Support APP interconnection control
  • Support 10/100Mbps Ethernet access
  • Support HTTP/HTTPS/RTSP/MMS/TS protocol
  • Support Airplay/DLNA/Qplay streaming protocol
  • Support Airplay, Bluetooth multi-room playback
  • Support Spotify / Tuneln /Qobuz / Youtube music /Tidal etc.
  • Support common lossless audio format decoding, up to 192kHz/24bit format
  • Support MP3/AAC/FLAC/ALAC/WMA/APE/WAV/OGG and other audio formats
  • Support 433M wireless remote control
Specifications
  • Product Name:HIFI wall mounted speakers
  • Product Model:CS-5
  • Audio Input:WiFi2.4G&5G / Bluetooth 5.0 / USB / AUX
  • Work Voltage:AC110V~ 240V
  • Output Power:100W*2 (4Ω) (1 master + 1 slave)
  • Frequency Response:60Hz-20kHz
  • Harmonic Distortion:10% MAX
  • SNR:90db
  • Sensitivity:89±3db
  • Music Format:MP3 / AAC / FLAC / ALAC / WMA / APE / WAV / OGG etc.
  • Music Source:Spotify / Tuneln /Qobuz / Youtube music /Tidal etc.
  • Music Streaming Protocol:Airplay、DLNA、QPlay
  • APP:Audio System
  • Download way:APP store/APK
  • Dimension:217×190×293 mm / 8.54×7.48×11.54 in(L×W×H)
  • Net Weight:4.3kg(master),3.9kg(slave)
What‘s in the box?

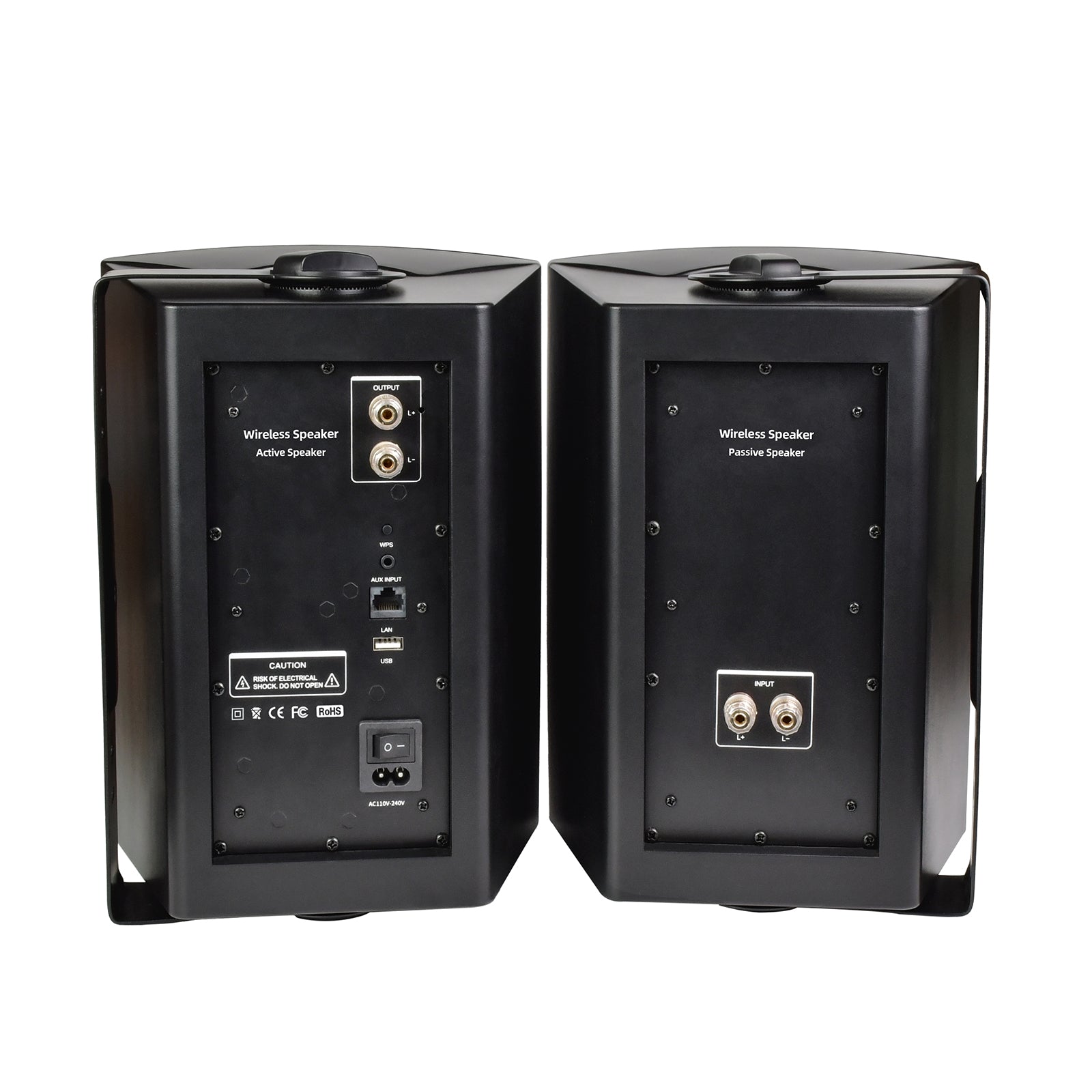

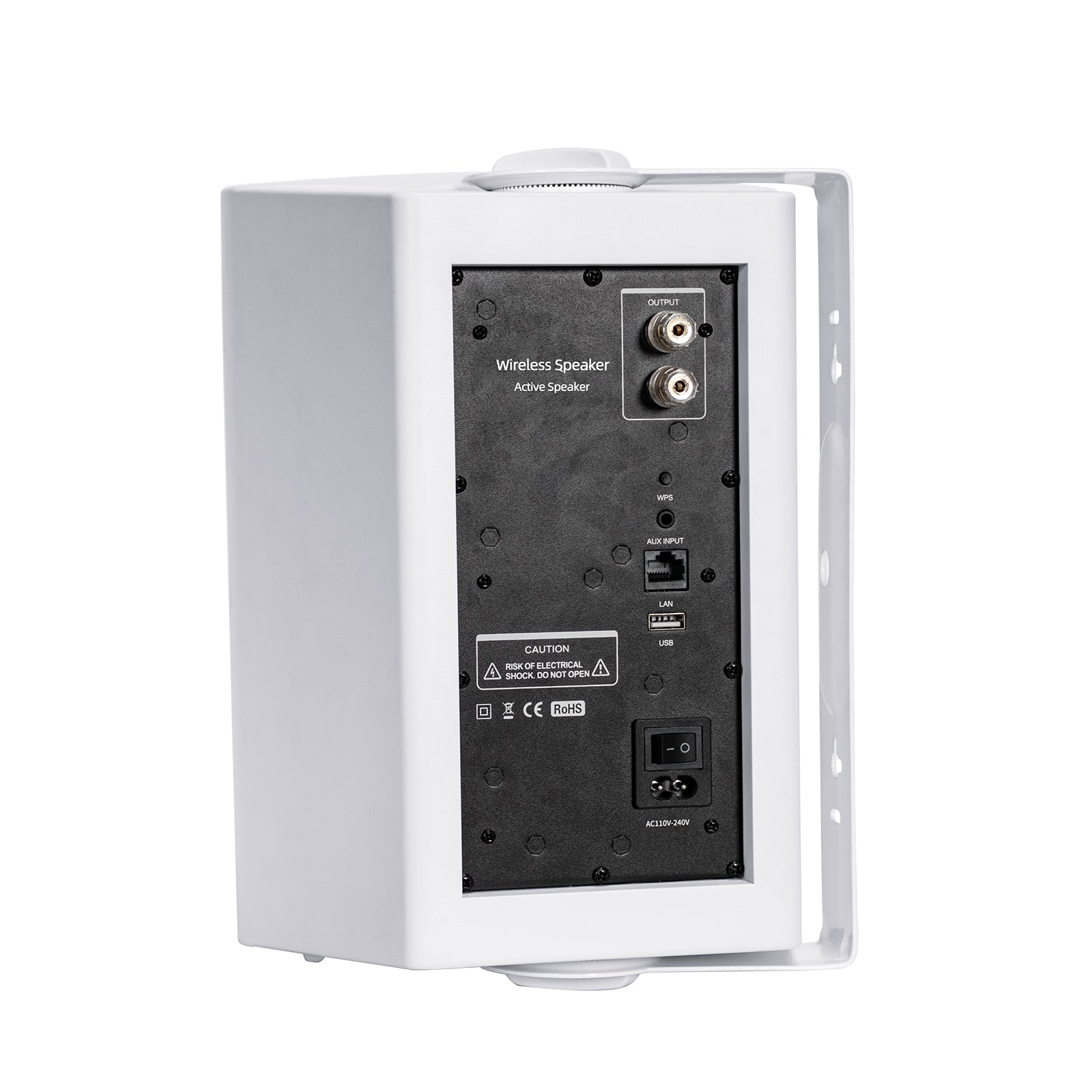

  • 1 x CS-5 Wall Mount Speaker Master
  • 1 x CS-5 Wall Mount Speaker Slave
  • 1 x 3.5mm audio cable
  • 1 x Power cable
  • 1 x Remote control
  • 1 x Water-proof back cover (Include installation accessories)
